Dished Ends

FLAT BOTTOM DISHED ENDS

We manufacture Dished-end of thickness from 6mm to 63mm & sizes ranging from 100mm ID to 5500 mm ID of material such as Stainless Steel, Carbon Steel, Alloy Steel, Cladded Plates, and Platinum Plates etc.

All dished-end are manufactured by point press method in cold form which is as follows:

2:1 Ellipsoidal
Tori Spherical
Deep Tori Spherical
Flat Bottom
Hemispherical
Crown & Petal Construction

In case of Crown & Petal Type Dished End, Complete 'V' Preparation & Mock up Assembly is carried out. Hot pressing of dished-end is also carried by special die-punch arrangement of size up to 800mm ID x 40mm thk.

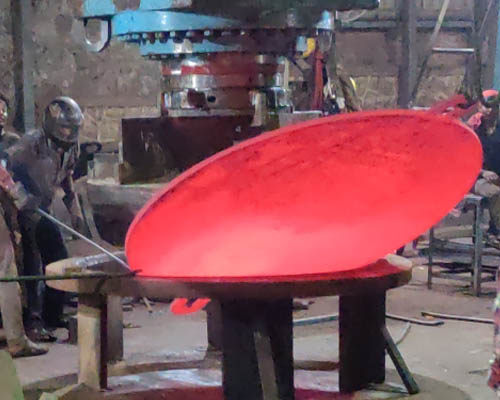

Hot Forming

Hot Forming

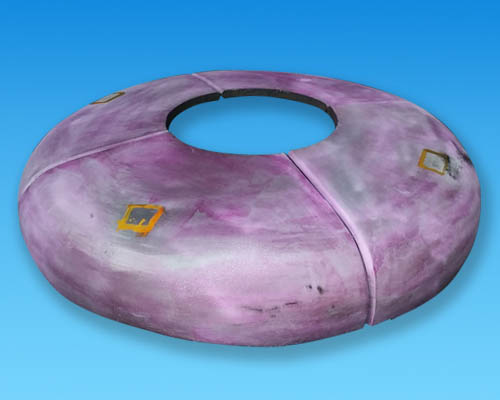

Segments

Segments

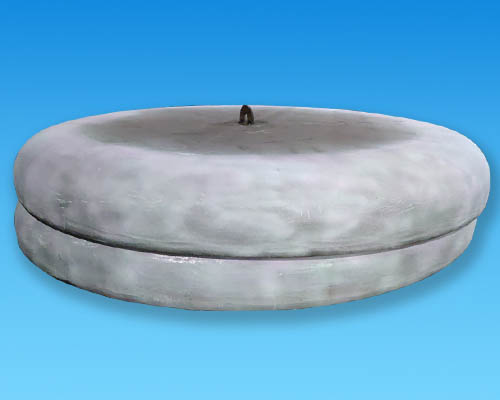

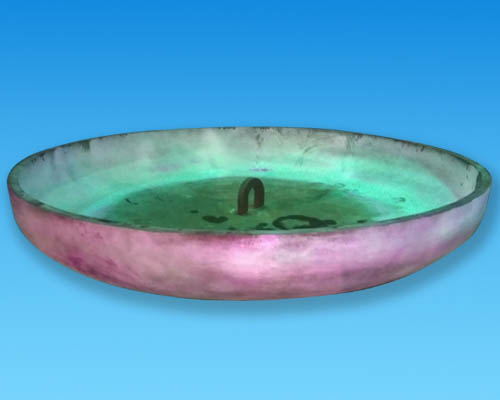

Single Piece

Single Piece
Single Piece
